Origin Bi-fold Door Configuration

1. Material

The material of the bi-fold door you choose is an important factor to consider. All Origin Bi-fold Doors are made from premium grade aluminium, and we only use prime billets. This means that none of the aluminium we use has been made up from re-melting scraps, giving us more control over the overall formation of the doors and allowing a greater finish to be achieved.

This innate strength means we can provide bi-fold doors that are physically secure, energy efficient and extremely durable. Aluminium frames can easily accommodate complex door layouts, such as moving corner posts and bay setups, without being too heavy.

Configurations, Sizes and Options

The configuration you choose for your bi-fold doors will depend on the space you’re looking to fill and the size of the opening you have available. They can be configured in a number of different ways, so knowing about the options can help you to make the right choice for your home.

2. System / Sightline Options

The Origin Bi-fold Door is available in sightlines of 36mm, 49mm or 72mm.

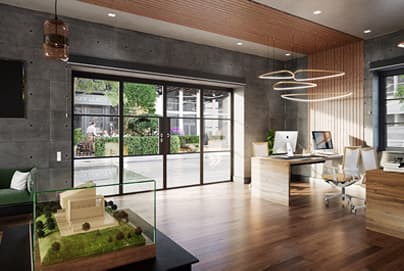

OB-36⁺ (Soho)With sightlines of just 36mm this is the slimmest bi-fold door available.

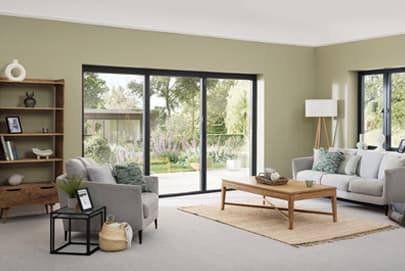

OB-36⁺ (Contemporary)Offering sightlines of 36mm, 49mm or 72mm in a more traditional style.

Start configuring your door by choosing the sightline option that’s right for your home and the purpose you want the door to serve.

3. Size

With Origin, you have complete freedom over the size and configuration of your doors. Once you have an overall size, you can choose your preferred configuration and how many individual door leaves and direction of opening you want.

For example, you may want fewer, wider doors to maximise the view, or, to accommodate a desired configuration, you could opt for more leaves. In this instance, the individual leaves would be narrower.

Explore the Bi-Fold Configurations

Drag the slider to select your aperture size

Metres

1.3 Feet

Configurations shown are approximate sizes. Contact your installer to discuss what's right for you.

1 door configurations

1 door (1+0)

1 door (1+0)
with midrail

2 door configurations

2 door (2+0)

2 door (1+1)

3 door configurations

3 door (2+1)

3 door (3+0)

4 door configurations

4 door (1+1)
with sidelights

4 door (1+3)

4 door (4+0)

5 door configurations

5 door (2+3)

5 door (4+1)

5 door (5+0)

6 door configurations

6 door (3+3)

6 door (5+1)

6 door (6+0)

7 door configurations

7 door (1+6)

7 door (3+4)

7 door (5+2)

7 door (7+0)

8 door configurations

8 door (1+7)

8 door (3+5)

8 door (8+0)

9 door configurations

9 door (1+8)

9 door (2+7)

9 door (4+5)

9 door (9+0)

10 door configurations

10 door (3+7)

10 door (5+5)

10 door (7+3)

10 door (9+1)

10 door (10+0)

12 door configurations

12 door (7+5)

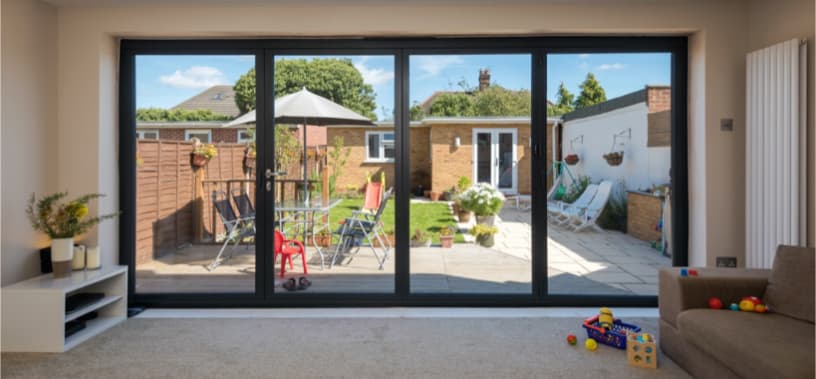

4. Configuration

In order to configure your door, you’ll need to specify whether you want them to open inwards or outwards. As with all tailored elements, the choice is yours and will be dependent on the space you have available as well as your individual preference.

Number of doors/panels and opening options

Bi-fold doors are available with a huge range of panel options and opening options, and the choice you make will depend on the space you have available and the best functioning for your home. Configurations for our Bi-fold Doors can be found in our product brochure.

Options include:

Two panels

Three panels

Four panels

Five panels

Six panels

Seven panels

Contemporary OB-49 External Door 1+3 Bi-fold Door

Origin Bi-fold Doors can be fitted with a traffic or access door. A traffic door is part of the overall bi-fold set, but can act as a traditional single door when the doors are closed. This door is a hinged door that opens and closes on its own to provide easy access in and out of your home, without having to open your bi-folds all the way. A traffic door is also fitted with a built-in locking mechanism.

We usually recommend choosing a configuration with an odd number of panels as this would allow for our unique multi-point lock to be used and provide you with an everyday access door. However, if you choose a configuration with an even number, you can incorporate a traffic door within it. e.g. If you have a 4 door set, you can choose a 3+1 configuration. Your local installer will be able to talk through the options with this.

5. Colour Options

With a choice of over 150 RAL colours, including dual colour options and two woodgrain colours, you can tailor your Bi-fold Door to your personal taste and style. If you opt for one of our popular colours, this will be available on a shorter lead time, so once you have configured your doors, you could have them sooner than you originally thought. Find out more about lead times on specific colour choices.

6. Glazing

When you buy an Origin Bi-fold Door, the glass is sourced and installed by your local installer, but they can be specified to accommodate either double or triple glazing - whatever suits your needs.

The tolerances on each component of our Bi-fold Doors are tested to make sure they can bear the weight of the glazing option you choose.

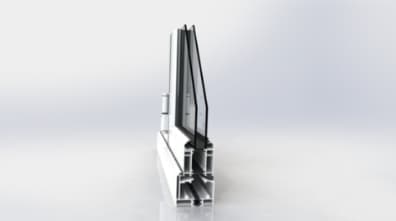

Double Glazing

• Weighs less than triple glazing so does not put as much pressure on the frames
• Good sound insulation
• Sufficient energy efficiency for the UK climate

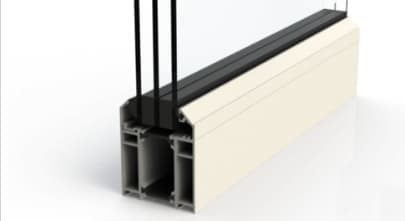

Triple Glazing

• More thermally efficient
• Allows less heat to escape for your home
• Superior noise reduction and acoustics
• Lower U-Value than double glazing

7. Threshold Options

When configuring your door, you will have the choice of a weathered, non-weathered* or low thresholds.** You should consider where you are planning to install the doors as well as how exposed to the elements they will be.

*Only available on OB-49 and OB-72
**Only available on OB-36⁺

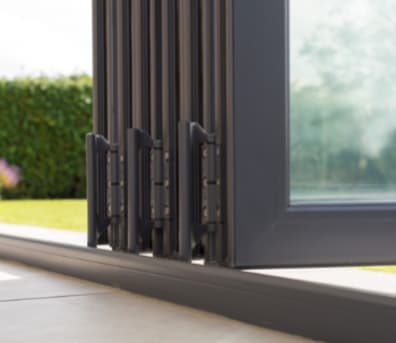

Weathered Threshold

includes an upstand which provides protection and keeps a home watertight.

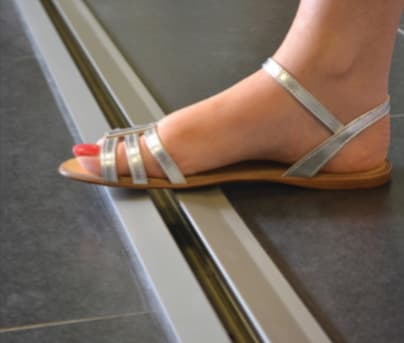

Non-weathered threshold

option creates a seamless, flush transition and is recommended for internal use or sheltered outside areas.

8. Handle Options

The finishing touch to your door configuration is your handle choice. Choose from modern and elegant handle styles to match your tailored design. You can decide on a standard aluminium or stainless-steel finish, and some of our handles can even be colour coordinated, so you can match or contrast with your chosen door colour.

Soho Signature Knurled

Truly stunning and highly versatile, our Signature Knurled Collection available in six exquisite finishes, is at the heart of our Soho Collection, offering a unique and tactile experience. Available across the OB-36⁺ range.

Antique Brass

Brushed Bronze

Brushed Black

Rose Gold

Satin Brass

Satin Stainless

Contemporary Handle

Stainless steel handle which can also be colour-coded, available on Contemporary External doors.

Solid stainless steel lever handle with separate escutcheon (Style 253/280)Also available on the Soho External door

Solid stainless steel lever handle with separate escutcheon (Style 251/280)

Solid stainless steel lever handle with separate escutcheon (Style 301/280)

Solid stainless steel lever handle with separate escutcheon (Style 303/280)

Solid stainless steel lever handle with long back plate (Style 253/270)

Slave and D-handles are available in any of the 150 RAL shades or can be specified in a stainless steel finish. These are used across both, Soho and contemporary bi-folds.

Popular aluminium handles

Our popular aluminium range is available in three colours that complement any door colour.

White aluminium lever handle

Chrome aluminium lever handle

Black aluminium lever handle

9. Lock Systems

Lock

Security is essential and Origin have developed a completely secure and unique 8-point locking system which can be used across all of our External Doors. Proven to protect against bumping, drilling, and snapping, all Origin External Doors conform to industry standards including PAS 24. In addition, both the OB-49 and OB-72 can achieve the prestigious Secured by Design status.

Barrel Options

Our OB-36⁺ and OB-49 both come with a 3-Star Diamond, British Standard Kitemark locking barrel as standard. These barrels are proven to protect against snapping, picking, drilling and bumping to help prevent intruders from gaining access to your property.

Our OB-72 can be upgraded to include a 1-star barrel which will make forced entry difficult.

Hinges

The hinges fitted to Origin Bi-fold Doors are specially designed to help withstand attacks and lessen the chances of intruders being able to access your home.

10. Accessory Finishes

The hinges, running gear, D-handle and slave handles of an Origin Bi-fold Door can be colour coded to your door colour, can be contrasted or are available in stainless steel.

For the lever handles, those in the popular Contemporary Aluminium are available in black, white or chrome. Handles in the Contemporary Stainless Steel are also available to be colour coded or specified in any RAL.

The gasket seal is also available to be specified to match your requirements, with eight colours available.

Your local installer can advise on the recommended colour options available, but the end result is tailored to you.

Performance

At Origin, we continuously learn, evolve and improve our products to ensure we provide the best levels of quality, as well as service and efficiency.

11. Security Ratings

As mentioned above, both the Origin OB-49 and OB-72 can be Secured By Design (SBD) accredited which is a police-backed standard, associated with security and levels of performance for weather, operation and quality on domestic properties.

This standard recognises that our doors have not only been tested to the standard security requirements, but that they also adhere to the rigorous test standards required by the police.

In addition, Origin Bi-fold Doors meet the following standards:

• PAS 24 (Enhanced Security)
• BS EN 6375 Part 1 (Weathertightness)
• BS EN 6375 Part 2 (Operational and Strength Characteristics)
• BS EN 6375 Part 3 (Basic Security)

This is further backed by Origin collectively holding the following accreditations for overall operations:

• ISO 9001 (Quality Management)
• ISO 45001 (Health and Safety Management)
• ISO 14001 (Environmental Management)
• BES 6001 (Responsible Sourcing of Construction Products)

12. Weather Resistance and U-Values

Origin Bi-fold Doors exceed British Building Regulation requirements for optimal thermal efficiency. Each door is engineered for superior weather rating, security and aesthetic appeal.

With triple glazing, our doors can offer the following U-values:

• OB-36⁺ - 0.78 W/m²K*
• OB-49 - 1.1 W/m²K*
• OB-72 - 1.1 W/m²K*

* When triple-glazing is specified

They are also fitted with weathertight seals to protect your home and doors from the elements. This means your doors will help to keep your energy bills lower and make the room useable all-year round.

13. Location Options

Bi-fold doors can be installed in a range of locations throughout your home. Their bespoke nature means they can be tailored to meet the size and needs of your home.

Here are just some of the locations in your home where you could consider installing bi-fold doors:

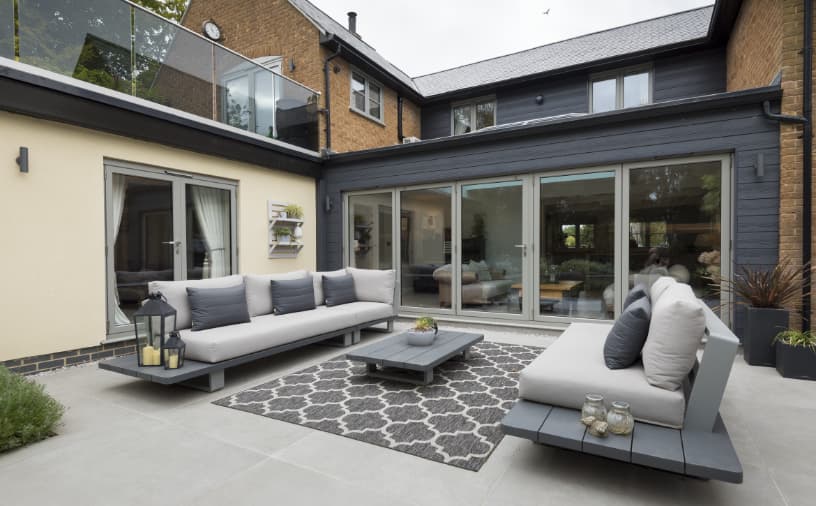

Patio

The key benefits of bi-fold patio doors include:

• Easy access to patio and garden from inside your home
• Excellent views of outside from inside your home
• Allow in huge amounts of natural light
• Keep the warm in and the cold air out

Learn more about patio bi-fold doors.

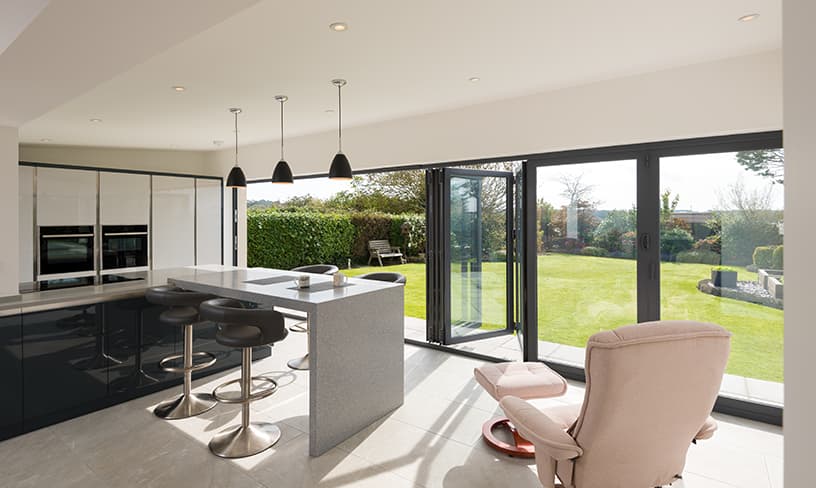

Kitchen

Bi-fold doors are the perfect addition to any kitchen and can be used for:

• Kitchen diners
• Open plan kitchens
• Kitchen to living room
• Kitchen to garden
• Corner bi-fold doors to open up two walls of your home

Find out more about kitchen bi-fold doors.

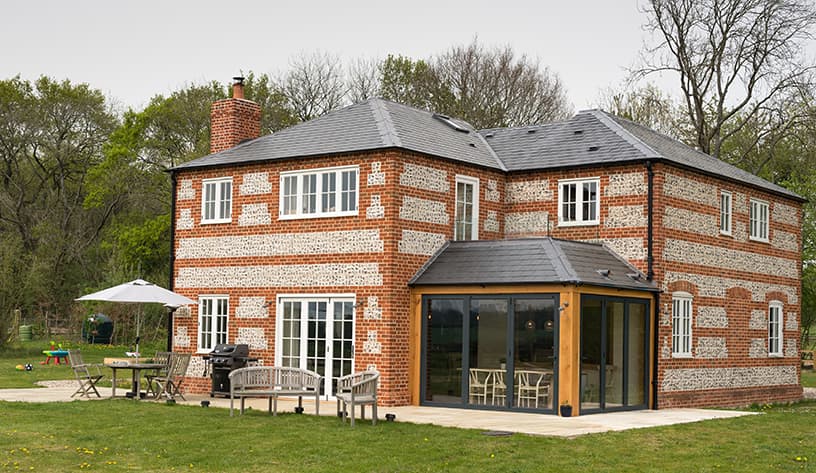

Extensions

Using bi-fold doors to open up your extension will allow you to enjoy the benefits of open plan living and will connect your patio or garden to the inside of your home. Here are some of the best uses for bi-fold doors within your extension:

• Small extensions
• Kitchen extension
• Flat-roof extensions
• Open plan extensions

Learn more about extension bi-fold doors.

14. Guarantees

At Origin, we pride ourselves on the high-quality of all of our products. We’re able to back this up with a guarantee of up to 20-years on parts on our bi-fold doors, depending on the product and its placement.

Some of our competitors offer guarantees of up to 25 years, but this can be misleading and often doesn’t cover every element of the doors. Our guarantee of up to 20-years covers the door and each of its manufactured parts, making our offering unique in the market.

Should it be required, your installer will be the one to undertake any remedial work and they will work with us for ancillaries and do the labour themselves, so be sure to check out the guarantee on their installation and the glass they have sourced.
